20mm Precision Investment Casting

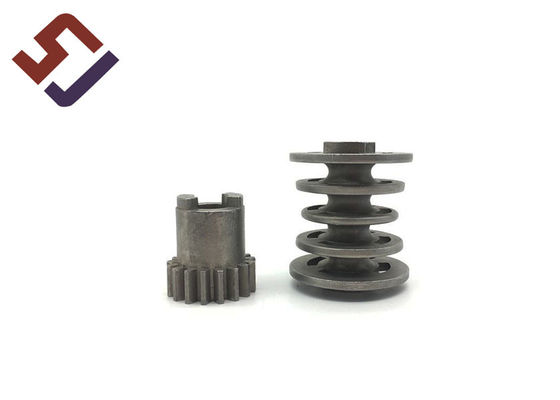

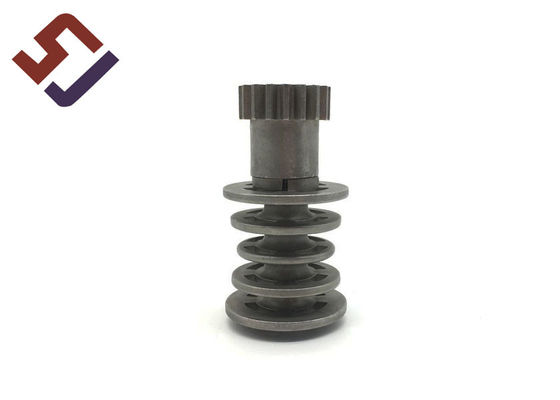

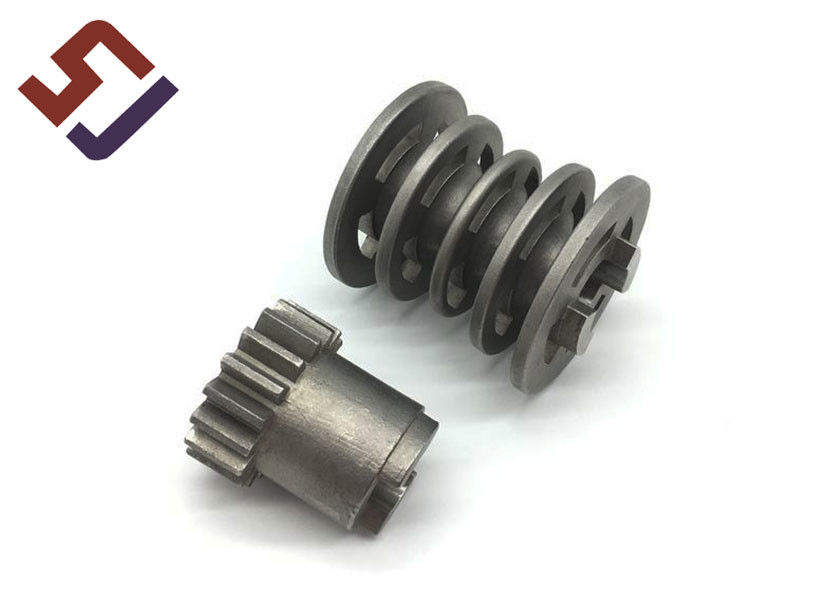

lost wax Casting wheel for the automatic food machine

Machinery Precision Investment Casting Hook Chrome Plating Precision Cast Components

The patented OrbiPlate system is used when connecting steel to steel or steel to concrete elements and delivers connection tolerances of up to 20mm around the centre of the connection. It also provides the ability to achieve fine locational accuracy when positioning each steel member.

OrbiPlate is quick and easy to install. The steel member is supplied to site with a pre-formed hole (70mm), which can be punched or cut at the centre of the connection location. The main washer is then placed over the hole, rotated to locate the slot over the ferrule, then secured using the class 8.8 bolt through the small washer. The bolt can be positioned anywhere along the elongated slot, providing up to 20mm tolerance in all directions.

Product Description:

1. Alloy Steel
3. High quality&reasonable price
4. Strict quality control
5. First-class service

Competitive Advantage:

1 . professional manufacturer, high reputation.

2 . Good team for quality and delivery time control.

3 . Near Shanghai port and Ningbo port.

4. Sample processing, material processing, material agent processing, drawing processing,

OEM processing, and other processing are all available.

5. small quantity order accept

6. Original quality
7. OEM service.

8. ISO 9001/TS16949 certified quality management system.
