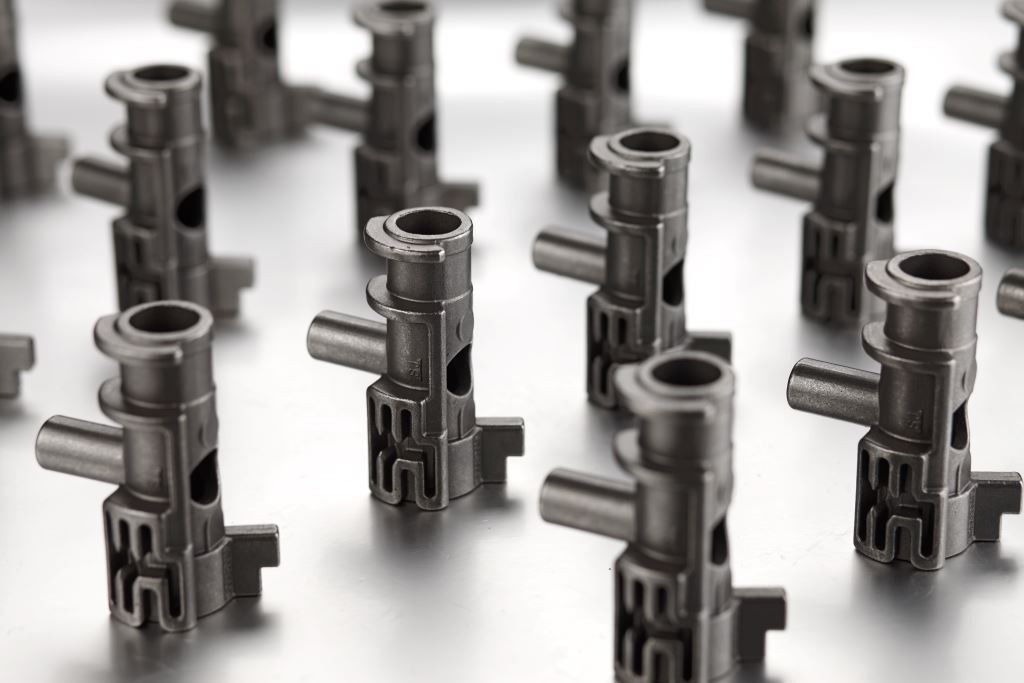

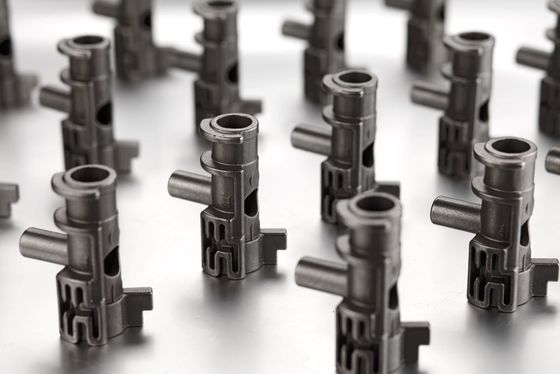

OEM Alloy steel Gear shift sleeve Auto Transmission Parts / automatic gearbox parts

Geer shift sleeve Auto Transmission Parts for Surface treatment with Silicon casting Alloy steel

We offer a wide range of auto parts die castings. Includes shafts, cams, gears, ratchets, pinions, and levers, among other parts that perform mechanical functions. Containment such as end covers, motor housings, gear housings, plates, seats and gaskets are also common choices in metallurgical processes. The process is known for minimizing production costs for internal, external, helical, spur, face and wear gears. Most gear tooth profiles can also be cast, including those with helix angles of up to twenty degrees. Male threads up to 50 or inches are also cast free of flash to Class 2A tolerances without milling or cleaning, as are multi-start threads.

Specifications:

Description:

1. Tolerance of rough casting: Tolerances as low as 30 µm

2. Customer: China automotive
3. Field of application: passenger or freight train
4. Supply ability: 1,0000-20000pcs per month

5. Minimum Order Quanlity:100pcs

A common motivation for choosing a high-volume casting process is its potential to reduce unit prices. Many factors can affect manufacturing economics, including component complexity, alloy properties, die casting techniques involved, casting tool precision and cycle rates. One of the reasons die casting is economical is that one die cast part can often replace multiple parts. Additionally, it is often possible to incorporate certain features into die castings, eliminating secondary operations such as milling, boring, reaming, and grinding.

 Competitive Advantage:

1. All of our products are strictly inspected and tested before packing in factory.

2. TS 16949 and ISO 9001 certified by TUV and PED certification by TUV.

3. The manufacturing process is investment casting and high precision machining in 4 axis machining

     centers. Very modern inspection machine to keep the very narrow tolerance, and good position gauge

     to keep correct position .

4. Tolerances as low as 30 µm are achieved without using expensive grinding processes.

5. First-class product quality and service by best facilities ,management and techniques.

Our invertment precision casting

lost wax precision castings Packing

Technique: Precision casting, Investment casting, Lost wax casting, Stainless steel precision casting

Lost wax castings parts Process flow chart

Wax Injection→Make Wax pattern and repair→Inspection→Shell Making→De-waxing→Roasting Shell and Melting Steel→Composition Inspection→Pouring→De shelling→Cutting and Grinding the pouring gate→Inspection→Heat treatment→Shotblasting→Machining→Anti-Corrosion→Final Inspection→Shipping

Process flow:
Wax Injection--Make Wax pattern and repair--Inspection--Shell Making--De-waxing--Roasting Shell and Melting Steel--Composition Inspection--Pouring--De shelling--Cutting and Grinding the pouring gate--Inspection--Heat treatment--Shotblasting--Machining--Anti-Corrosion--Final Inspection--Shipping

Why choose Suijin?

1. We are specialized in producing kinds of investment casting parts.

2. Supply Customized Stainless Steel Precision lost wax Investment Casting

3, We can offer you the one-stop solution from 3D design to product forming and also provide the mold components during the mold lifetime. All the quality process full according to the TS 16949 process

4, We have always carried out the human-based management, so everyone would be always responsible to their own work.

5, We have owned experienced engineer in the mold department and mold injection department and then we can provide not only mold but also products.

6, Our principle is customer is the God, Be committed to the continuous improvement of our product quality, to meet customer need as much as possible.

7, All of our products would be produced by strict control in every machining process. All the threads 100% check by the automatic threads machines

8, We can offer you very low price and best after-sales service in order to promote our big and long cooperation.

9. The professional team with professional experience will help you optimizing the whole solution for you casting designing, casting processing to machining, heat treatment, surface treatment and so on, to lower total processing costs, or achieve value-added products, help you to improve market competitiveness and obtain maximize profits

Our company and factory

We manufactured all kinds of lost wax investment castings and machining parts or called precision investment castings , material including carbon steel, alloy steel, and stainless steel. we also can according to the customers' requirement to compound the material, Our factory has a floor space of 33,000 square meters and another 18000 square meters of building area, which contain both casting foundries and CNC machining area. Our advanced lost wax casting and investment casting production lines have a capacity of 5000 tons lost wax castings and 1000 tons investment castings per year.

Application Information:

Our precision investment casting/ lost wax castings are used in Automotive, motorcycle, valve, marine, machine tools, hardware, railway, gear, impeller, pump, reducer, motor, mining machinery, engineering machinery, transmission machinery, forestry machinery, communal facility, etc.
